Results

Overview And Conclusion

The goal of this project was to allow the user to send any message, have it encrypted and sent over a mechanical system, get decrypted, and then displayed on a receiver end website. The entire pipeline works as expected: A user can input a message, it gets encrypted with a random key and sent over the mechanical system; the FPGA reads and decrypts data, sends it to the MCU for decryption. The main issue was that we couldn’t properly debounce the receiver switches which meant that the received data is corrupted. When it’s decrypted, the output on the receiver website is different from the sent message. Nonetheless, we were glad to have been able to demonstrate the working of the full pipeline despite the shortcomings from reading the limit switches.

Software Results

Our project sender side executes properly as desired. We are able to trigger all operations and send over the cyphertext and the key through the mechanical module properly. The receiver side was a shortcoming because we couldn’t properly sample the inputs from the receiver side that matches what was sent through by the sender side. However, we are confident that our modules perform the desired operations properly as shown in the testebench demonstrations below. We configured the testbench to have a lot of monitor signal so we can track bit by bit everything that is sent.

Figure 1: Message Byte Receiver Module Testbench

Fromt the resuslts and the monitor signals above, we can see that the expected bytes are received and reconstructed at the end which is what we expect to happen.

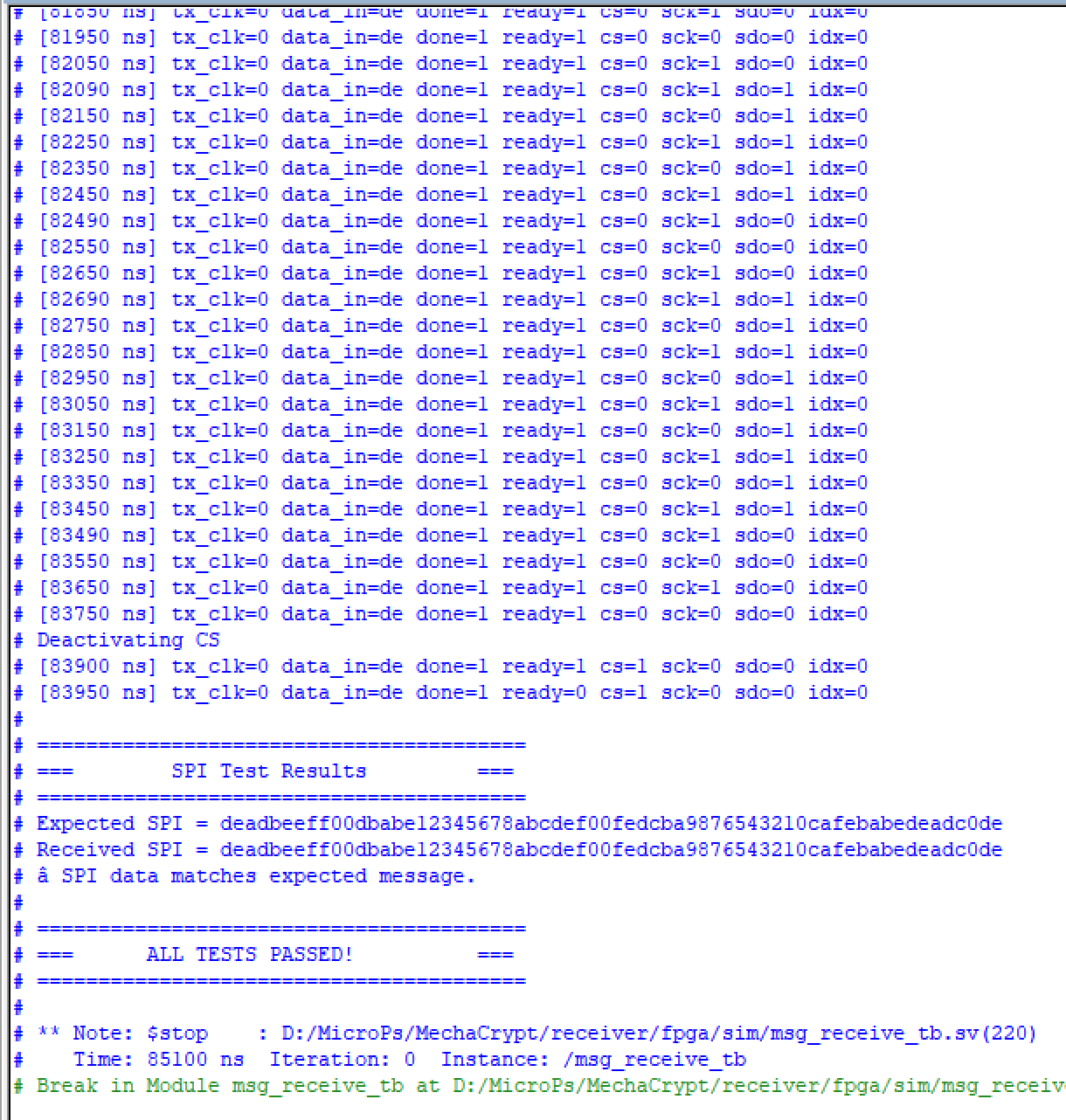

Figure 2: Debugging SPI

The debugging SPI also shows that we can properly shift out the bits to the MCU for use to check data.

Hardware Results

We were able to successfully actuate our mechanical system from our FPGA, with a user determined input message. During our process of getting the mechanical system to work, we realized that each solenoid was drawing close to 0.85 A of current, which overloads our lab bench power supply. Thus, we were able to find a bigger 12 Amp power supply to support our 6 A of current needed by all the solenoids being on at once.

We were able to use our FPGA to set the sending speed of our mechanical system. Per our specs, we chose to send it at 3 Hz, or the equivalent of 3 bytes per second without any issues.

Below is a demo video of us inputting a message on the website, and the ciphertext and key sent over the mechanical system.
